Thermal Insulator Sleeves
Description

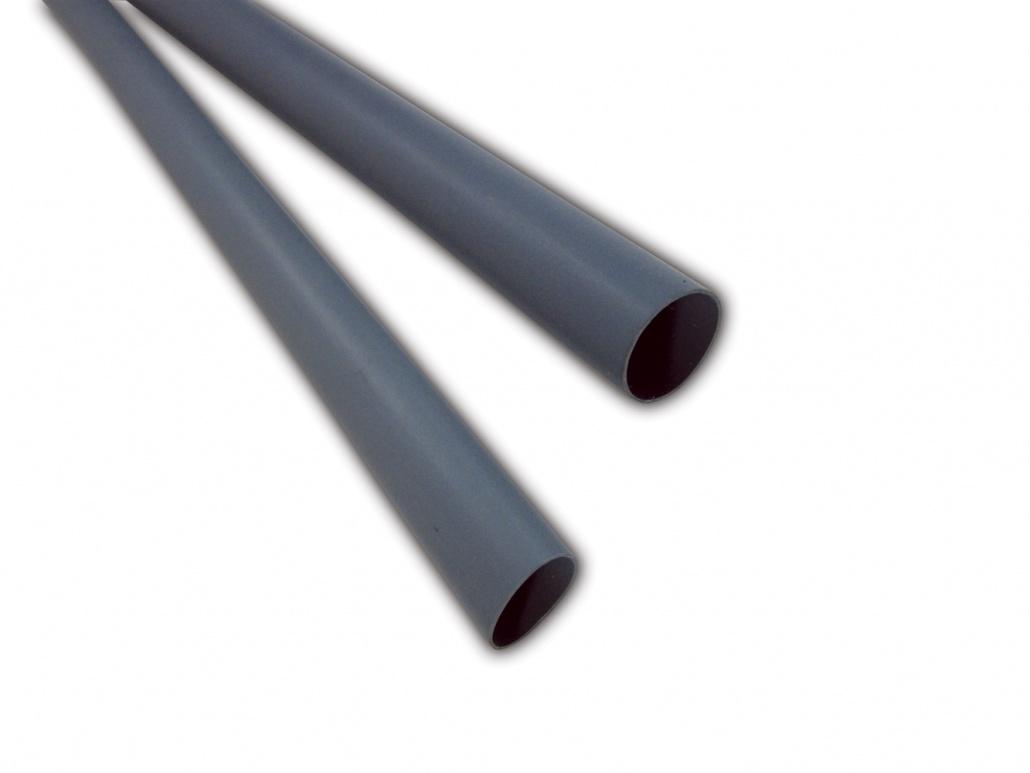

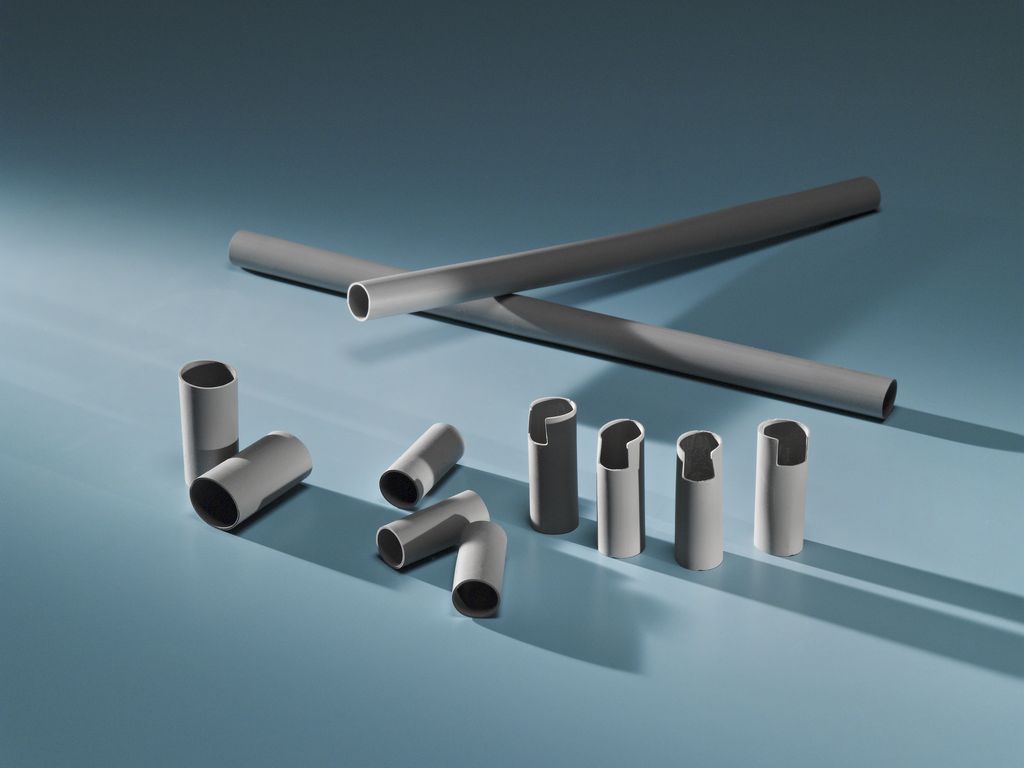

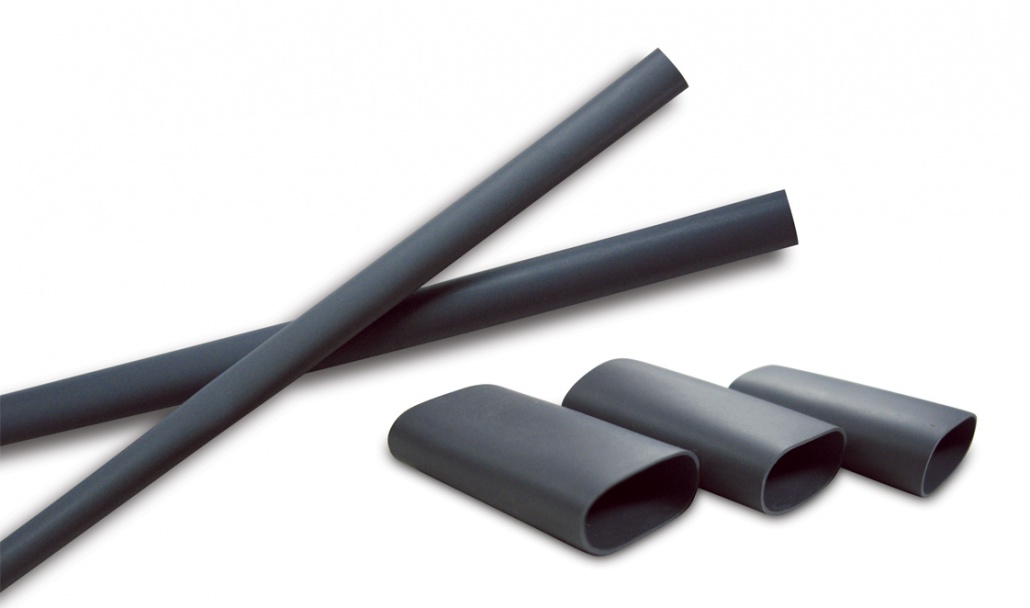

Uni-Home Industry’s Thermal Insulator Sleeve shares similar features and benefits with Thermal Insulator Caps for thermal conductive and insulating purposes. It comes in hollow sleeve form with various diameters available for different applications. Cut length service is also available for those who wish use small piece of sleeve instead of the whole roll. Products are to be used in wide application among electronic devices and internal parts for machinery fields.
Specifications
Features:
- Strong dielectrical strength.
- Excellent mechanical strength.
- High Temperature endurance with UL recognized flammability rating.
- Meet RoHS specification.
Specification: ID 10, 14 mm.
Thickness: 0.5mm.
Color: Gray.
Data sheet can be swiped left and right when browsing this page using a mobile phone or a lesser resolution mobile device.
Properties | Typical Values | Unit | Test Method | |
Physical | Color | Gray | Visual | — |
Finish | Smooth | Visual | — | |
Thickness | 0.5 | mm | ASTM D374 | |
Operating Temperature | -30~+200 | ℃ | — | |
Mechanical | Density | 1.48 ± 0.1 | g/cm³ | ASTM D792 |
Tensile Strength | 35.9 ± 5 | kgf/cm² | ASTM D412 | |
Elongation | 217 | % | ASTM D412 | |
Hardness | 60± 5 | Shore A | ASTM D2240 | |
Electrical | Breakdown Voltage | >30 | kV | ASTM D149 |
Volume Resistivity | 1.06 x 1015 | Ω • cm | ASTM D257 | |
Thermal | Thermal Conductivity | 0.3 | W/m.k | ASTM D5470 |
Regulatory | Flammability Rating | V-0 | — | UL 94 |
RoHS Compliant | Yes | — | Lab. Certification | |
PFOA Compliant | Yes | — | Lab. Certification | |
PFOS Compliant | Yes | — | Lab. Certification | |
SVHC Compliant | Yes | — | Lab. Certification |
