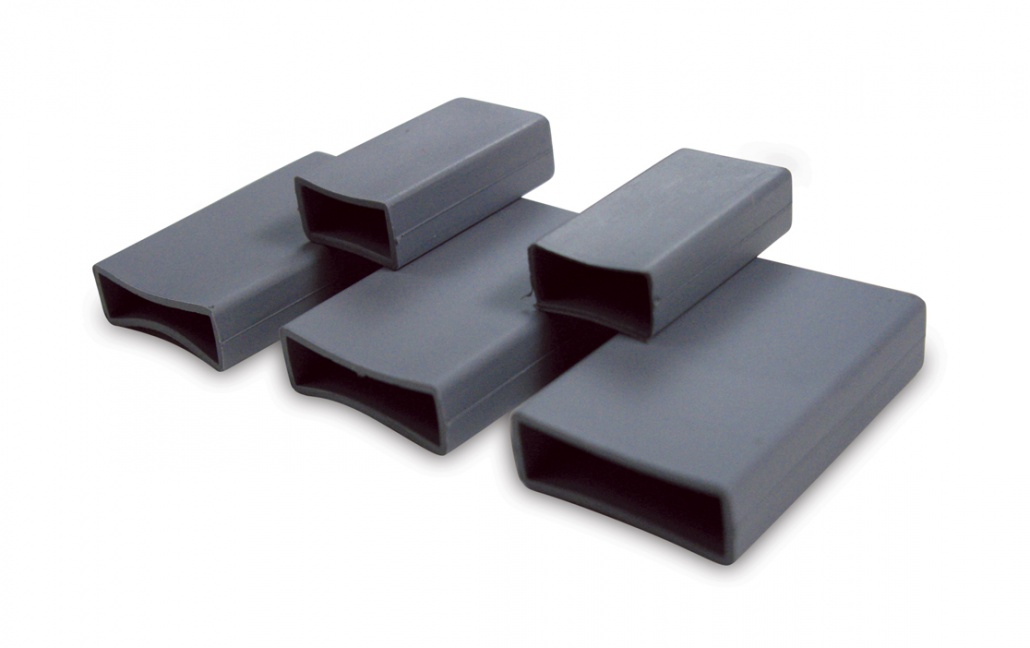

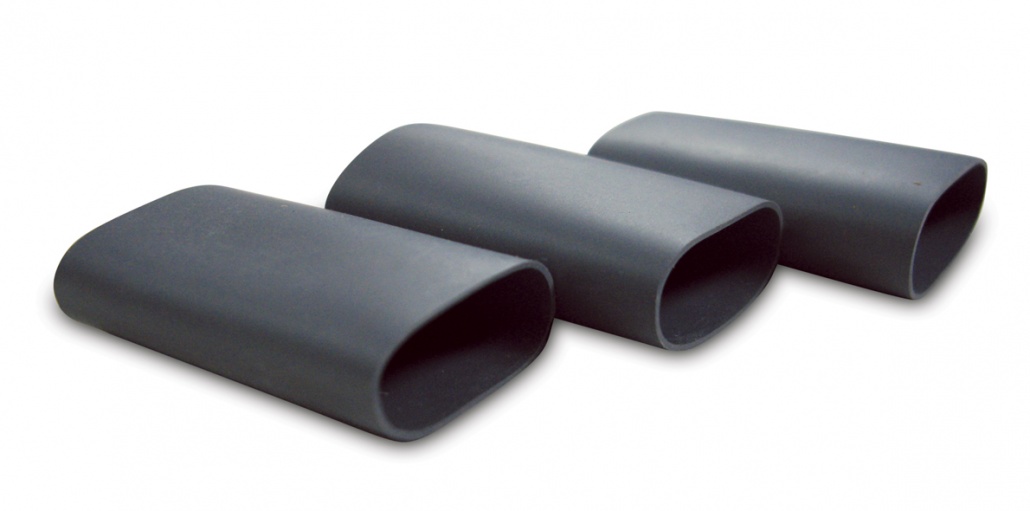

矽膠散熱帽套
用途 :

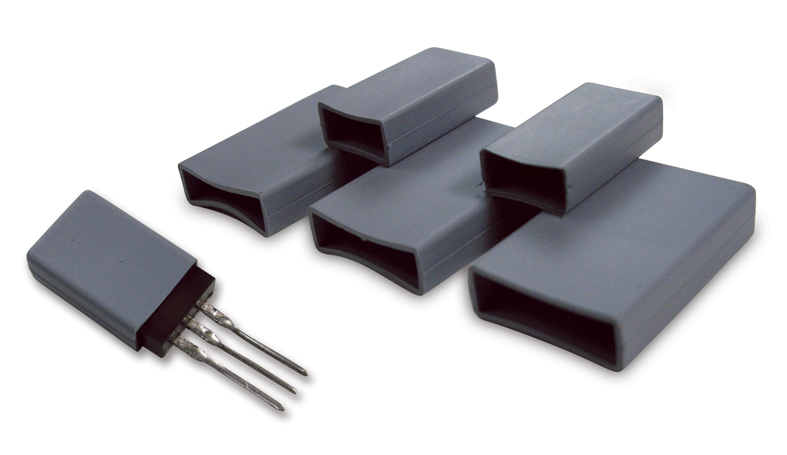

用於電子元件上，起散熱、絕緣作用。
詳細規格
主要特性︰絕緣、散熱、耐磨、阻燃、抗壓縮和符合RoHS環保認證。
規格 : P-TO-220-A , P-TO-220-B , P-TO-220-C , P-TO-3P-A , P-TO-3P-B , P-TO-232 .
厚度 : 0.5mm and 0.8mm
顏色 : 灰

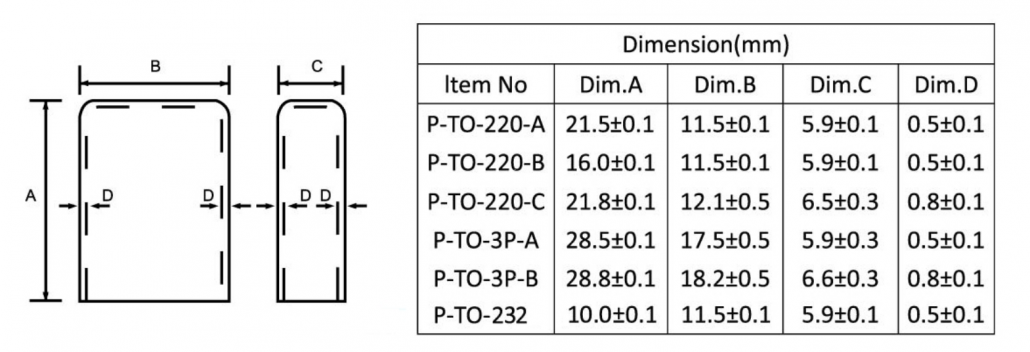

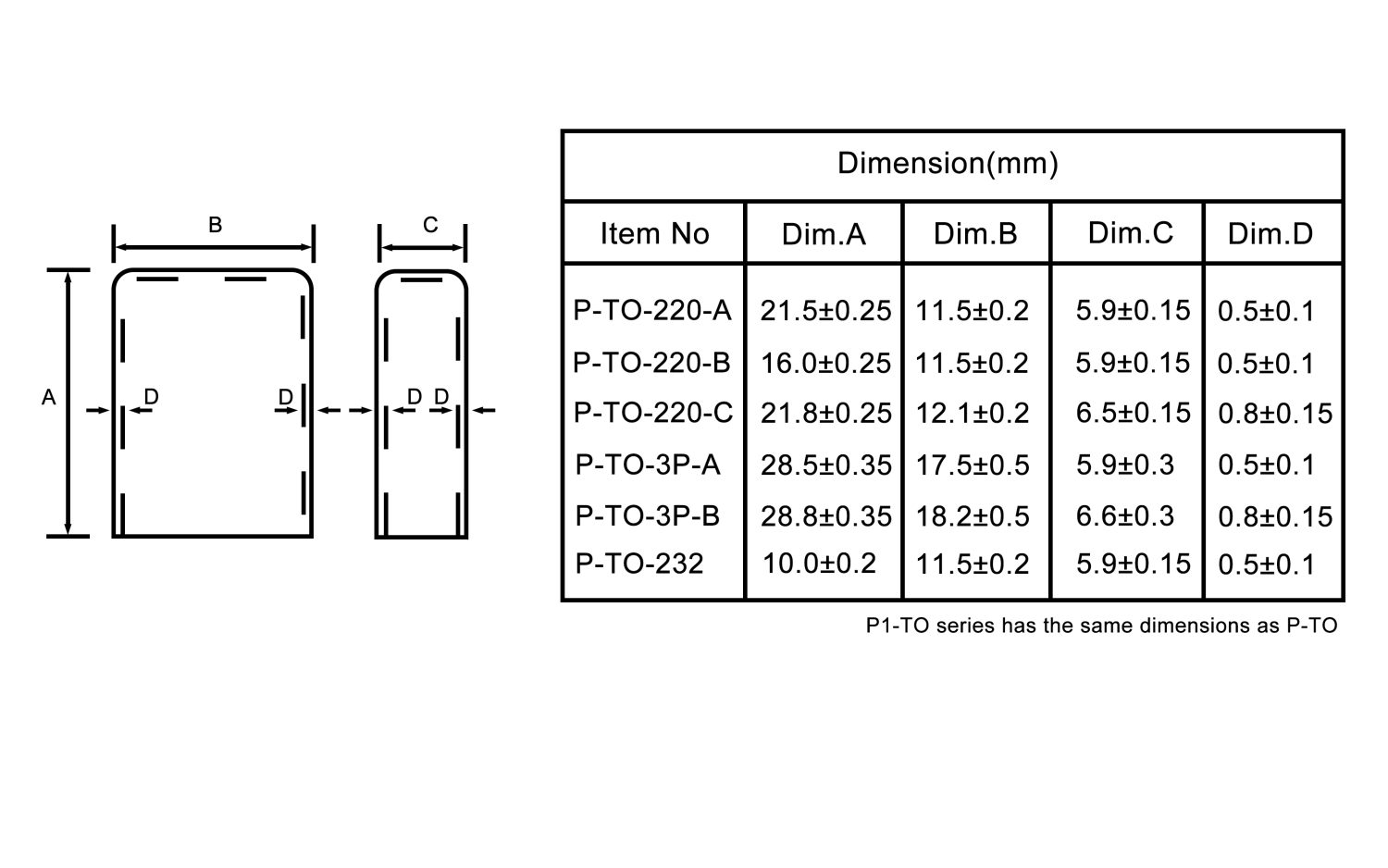

帽套尺寸圖
使用手機或解析度較少的行動裝置瀏覽本頁面時，下方物性表可左右滑動觀看。
| Properties | D = 0.5mm | D = 0.8mm | P1-TO-xxx | Unit | Test Method | |
| Physical | Color | Gray | Gray | Gray | Visual | — |
| Operating Temperature | -40~+180 | -40~+180 | -60~+180 | ℃ | — | |
| Mechanical | Specific Gravity | 1.15 | 1.70 | 2.30 | g/cm³ | ASTM D792 |
| Elongation | 460 | 160 | 60 | % | ASTM D412 | |
| Hardness | 50 ± 5 | 70 ± 5 | 60 ± 5 | Shore A | ASTM D2240 | |
| Electrical | Voltage Breakdown | 4.0 | 4.0 | >10 | kV | ASTM D149 |
| Thermal | Thermal Conductivity | 0.3 | 0.3 | 1.4 | W/m.k | ASTM D5470 |
| Regulatory | Flammability Rating | V-0 | V-0 | V-0 | — | UL 94 |
| RoHS Compliant | Yes | Yes | Yes | — | Lab. Certification | |
| PFOA Compliant | Yes | Yes | Yes | — | Lab. Certification | |
| PFOS Compliant | Yes | Yes | Yes | — | Lab. Certification | |
| SVHC Compliant | Yes | Yes | Yes | — | Lab. Certification |
