Zebra Connectors

Description

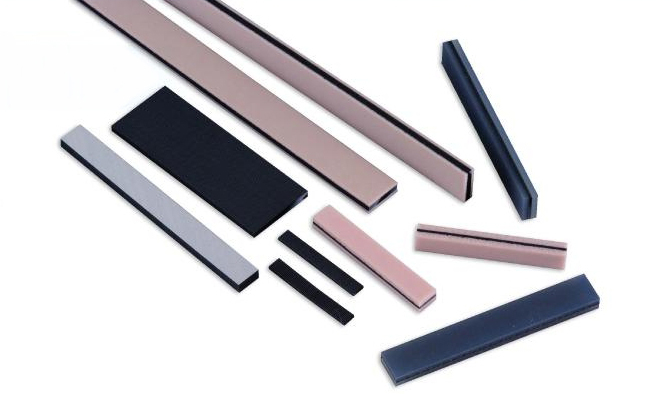

Zebra Connectors are composed of conductive silicone rubber and general silicone rubber. It is divided into 3 types of connectors as followings:
L Type – Full Conductive Connector
Application: Digital cameras, electronic clocks /watches, electronic calculators, clinical thermometer, etc., and LCD (Liquid Crystal Display) display module.
LS Type – Full Conductive Connector covered with Silicone Insulator on both sides.
Application: Mobile phones, electronic scales, measuring devices, PSP and LCD (Liquid Crystal Display) display module.

LG Type – Full Conductive Connector covered with Silicone Sponge Insulator on both side.
Application: Laptop, industrial measuring devices, stereo panel board, automobile dashboard, and LCD (Liquid Crystal Display) display module.
Inquiry
L type, LS type, LG type    Three specifications
  • Technical Information
  • L Type Tolerance List
  • Data sheet can be swiped left and right when browsing this page using a mobile phone or a lesser resolution mobile device.

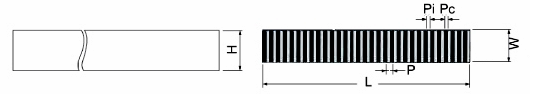

 Item Unit 0.05P 0.10P 0.18P 0.25P
 Pitch P  mm  0.05  ±  0.03  0.1    ±    0.04 0.18   ±   0.05   0.25  ±  0.05
 Length L mm 1.0~5.0 ± 0.1、5.1~30.0 ± 0.2、30.1~70.0 ± 0.3
 mm 70.1 ~ 120.0 ± 0.4、120.1 ~ 200.0 ± 0.6、200.1 ~ 300.0 ± 0.8
 Height  H  mm  0.8 ~ 5.0 ± 0.1、5.1 ~ 25.0 ± 0.15
 Width  W  mm  0.4 ~ 8.0 ± 0.1
  Properties 0.05P 0.10P 0.18P 0.25P Unit Test Method
Physical Compression Set 15~20 15~20 15~20 15~20 %   —
 Operating  Temperature  -25~+85  -25~+85  -25~+85  -25~+85 ℃  —
Mechanical Specific Gravity   1.15  1.25  1.25  1.25 g/cm³  ASTM D792
 Tensile Strength   50~60   50~60   50~60  50~60    kg/ cm²  ASTM D412
Elongation 250~330 150~200 150~200 150~200 %  ASTM D412
Hardness 65±5  65±5  65±5  65±5  ShoreA  ASTM D2240

Electrical

 Voltage Breakdown   23~27  23~27  23~27  23~27 Kv/mm  ASTM D149
Volume Resistance   0.7~1.0  4~6  4~6  4~6  Ω˙cm ASTM D257
 Insulation Resistance  (500VDC) 1 x 103 1 x 103 1 x 103 1 x 103  Ω ASTM D149
Regulatory  RoHS Compliant
 Yes Yes Yes Yes  —   Lab. Certification

  • The above testing results comes from laboratory report, information are for your reference only .

  • Technical Information
  • LS and LG Type Tolerance List
  • Data sheet can be swiped left and right when browsing this page using a mobile phone or a lesser resolution mobile device.
 Item Unit 0.05P 0.10P 0.18P 0.25P
 Pitch P  mm  0.05  ±  0.03  0.1    ±    0.04 0.18   ±   0.05   0.25  ±  0.05
 Length L mm 2.0~20.0 ± 0.15、20.1~90.0 ± 0.35、90.1~150.0 ± 0.6
 mm 150.1 ~ 200.0 ± 0.8、200.1 ~ 270.0 ± 1.0、270.1 ~ 300.0 ± 1.5
 Height  H  mm  1.0 ~ 5.0 ± 0.1、5.1 ~ 20.0 ± 0.15
Total  Width  W  mm  1.0 ~ 2.3 ± 0.1、2.4 ~ 5.0 ± 0.15

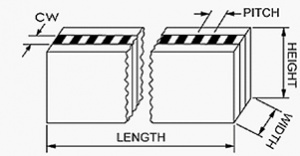

Conductor Width CW mm  0.4 ± 0.05
  Properties Component LS Type LG Type Unit Test Method
Physical Compression Set  — 12~18 12~18 %   —
 Operating  Temperature  —  -25~+85  -25~+85 ℃  —
Mechanical Specific Gravity  Insulator  1.15  1.15 g/cm³  ASTM D792

Conductor 1.25  1.25
 Edge Insulation  1.1   0.6
Hardness Insulator 65~73 65~73 ShoreA  ISO7619 (Type A)
Conductor 63~67 63~67
 Edge Insulation  20~30 17~23
Electrical

 Voltage Breakdown
 Insulator 23~27 23~27 Kv/mm
ASTM D149
Edge Insulation 23~27 2.0~2.5
Volume Resistivity   Insulator  1 x 1014  1 x 1014  Ω˙cm ASTM D257
Conductor   3~6  3~6
 Edge Insulation 8 x 1013 1 x 1011
 Insulation Resistance  (500VDC)  — ≤1 x 103 ≤1 x 103  M.Ω ASTM D149
Regulatory  RoHS Compliant
  — Yes Yes  —   Lab. Certification

  • The above testing results comes from laboratory report, information are for your reference only .
